| الاسم التجاري: | Sylaith |
| رقم الطراز: | Q235، Q235B، Q345، Q345B، Q195، St37، St42، St37-2، St35، St52.4، St35 |
| الـ MOQ: | 1 طن |
| السعر: | قابل للتفاوض |
| وقت التسليم: | 7-20 يومًا، اعتمادًا على الكمية والسمك ومتطلبات المعالجة |
| شروط الدفع: | 30% T/T مقدم + 70% T/T الرصيد |

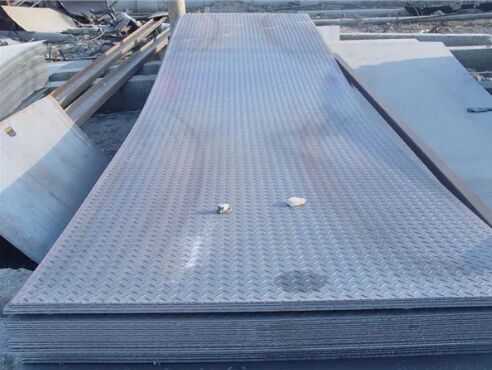

Hot rolled checkered steel plate, also known as chequered steel sheet or patterned steel plate, is widely used in industrial flooring, stair systems, transportation platforms, and structural applications requiring anti-slip performance.

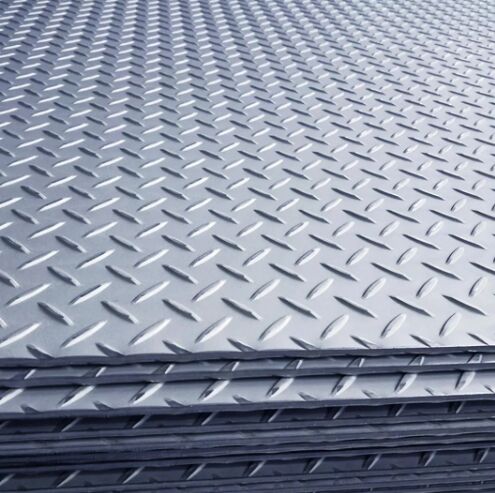

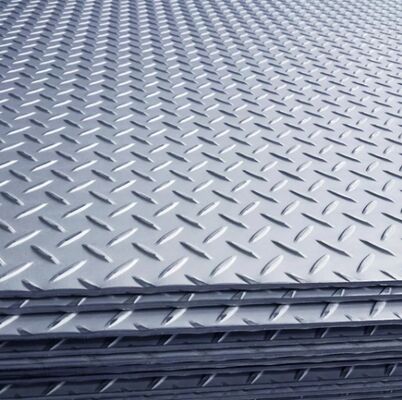

This product is manufactured using hot rolling technology and features raised surface patterns such as diamond, hyacinth bean, or chrysanthemum patterns to improve surface friction and load-bearing capability.
Available materials include:
The steel plate is suitable for fabrication, welding, bending, and structural processing applications.
Industrial flooring and structural walking surfaces are often exposed to:
Standard smooth steel plates may create slipping risks under these operating environments.
In addition, many industrial projects require:
Hot rolled checkered steel plates are designed to address these issues through patterned surface structures and structural-grade carbon steel materials.
This hot rolled checkered steel plate solution combines:
Key solution features include:
The patterned design improves friction between footwear, machinery wheels, and platform surfaces, making it suitable for industrial safety applications.
| Item | Specification |
|---|---|
| Product Type | Hot Rolled Checkered Steel Plate |
| Thickness | 1.8–10 mm |
| Width | 1000–2000 mm |
| Length | 2000–12000 mm |
| Typical Size | 4.75*1250*6000 mm |
| Material Grades | Q235B / A36 / SS400 / S235JR / St37-2 / St52 |
| Surface | Blackface |
| Pattern Types | Diamond / Hyacinth Bean / Chrysanthemum |
| Standard | ASTM / AISI / GB / JIS / DIN / BS |
| Technique | Hot Rolled |
The anti-slip performance of checkered steel plate is achieved through embossed surface patterns formed during hot rolling.
Working principle includes:
The carbon steel substrate provides:
Different pattern designs are selected according to traffic conditions and application environments.
| Application | Recommended Thickness |
|---|---|
| Light-duty walkway | 2–3 mm |
| Industrial flooring | 4–6 mm |
| Heavy equipment platform | 8–10 mm |
For humid or outdoor environments, additional surface protection may be required:
The raised pattern improves anti-slip performance while maintaining structural strength for industrial flooring and platform applications.
Yes. The material supports welding, cutting, bending, and structural fabrication processes.
4–6 mm is commonly used for factory flooring and maintenance platforms, depending on load requirements.
Yes, but outdoor environments may require protective coatings or galvanizing to improve corrosion resistance.
Yes. Thickness, width, length, and surface patterns can be customized according to project requirements.
فيديو
فيديو
|
| الاسم التجاري: | Sylaith |
| رقم الطراز: | Q235، Q235B، Q345، Q345B، Q195، St37، St42، St37-2، St35، St52.4، St35 |
| الـ MOQ: | 1 طن |
| السعر: | قابل للتفاوض |

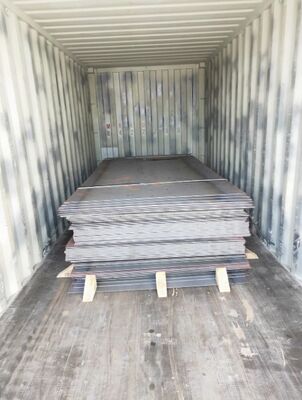

| تفاصيل التعبئة: | التعبئة القياسية للتصدير البحري أو حسب حاجة العملاء |
